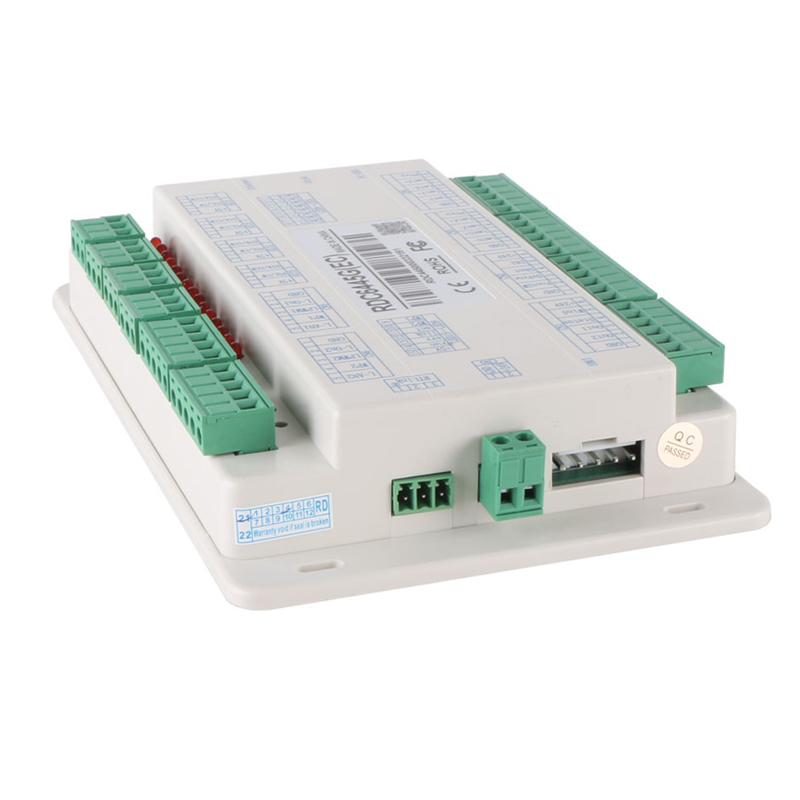

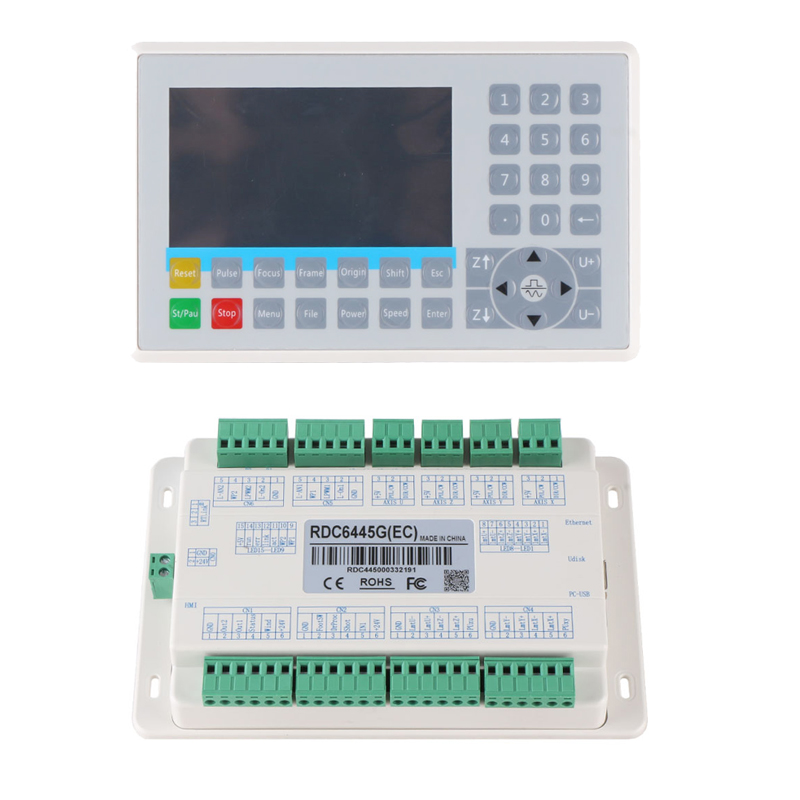

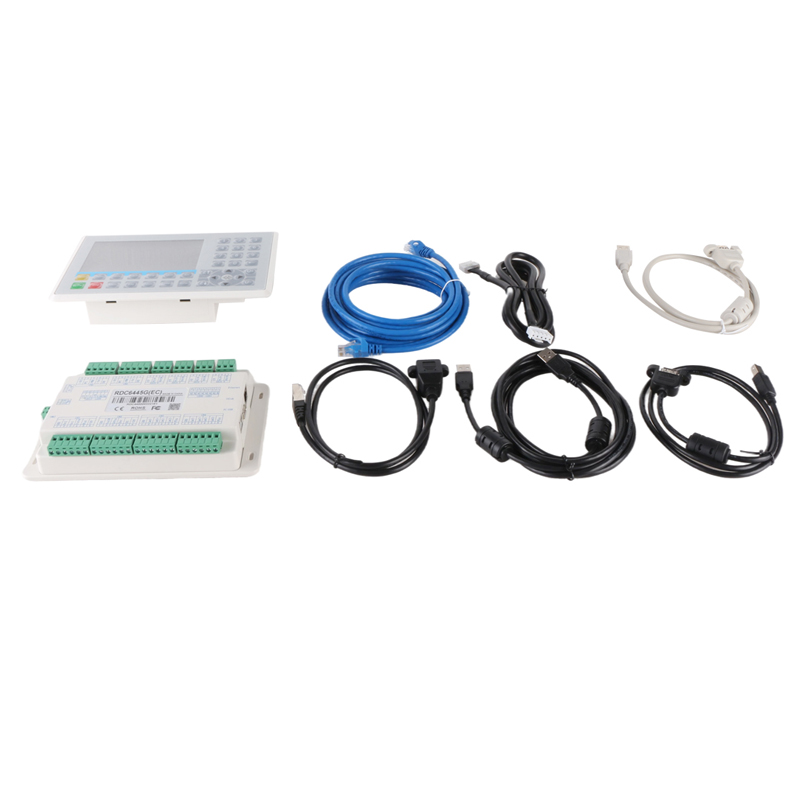

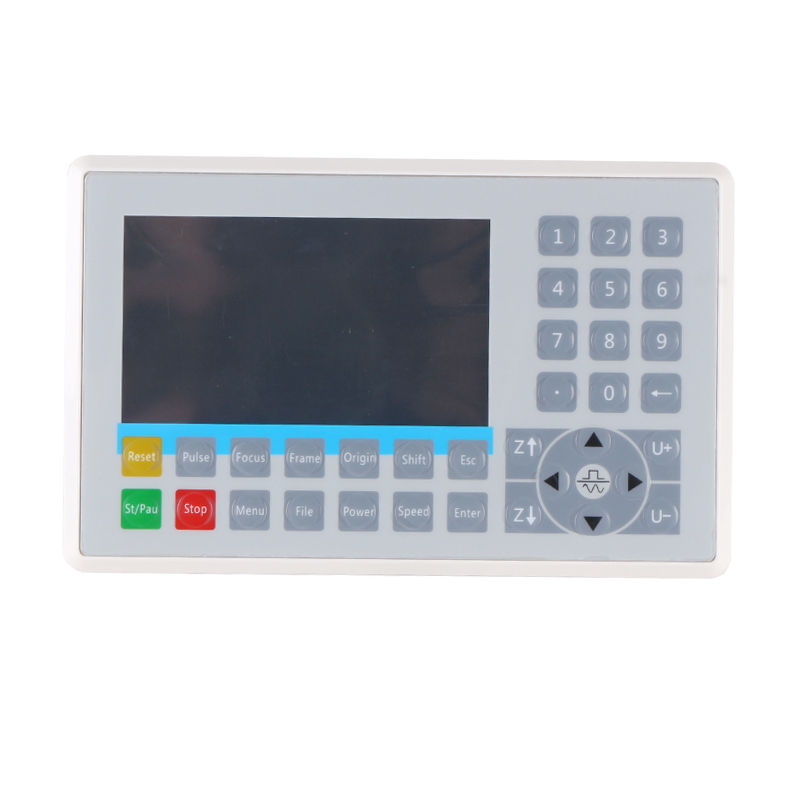

Ruida RDC6445S/G Replacement Control Panel Mainboard Kit for CO2 Laser Engravers Machine

Technical Parameters:

1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;

2. On-board 128M non-releasable memory;

3. USB maximum transfer rate is 12M, the longest distance is 5 meters;

4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;

5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;

6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection),

7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;

1. Support up to 4 servo / stepper motor control;

2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices

3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;

4. Support mobile APP;

5. Support dual-head electric mutual shift control and super-format split cutting processing;

6. Support dual-head asynchronous processing;

7. Support large format vision, mark point visual cutting and projection cutting and other processing methods
