HanLaser HL-1060 100w laser engraver cutter B1 connection guide

In this post, I will show you step by step how to setup  HanLaser HL-1060 100w laser engraving machine and pilot run test cut.

Step 1. Unboxing and assemble laser cutter

Step 2.  Setup connections physically HL-1060 100w laser engraving machine.

Step 3.  laser B1 motherboard connectivity check

An often asked question is why my laptop didn’t recognize the laser engraving machine. This video shows you how to verify data link between laptop and laser engraving machine.

Step 4.  laser engraving machine dongle connectivity check

To enable laser engraving machine working, USB dongle is critical to enable its Motherboard working correctly. It somehow related to intelligent Property.

Step 5.  laser engraver coreldraw x6 and corellaser software installment

Corel draw is very famous design software, widely used in different fields around our life. This video shows how to install Coreldraw Suite x6 and plugin for HL-1060 100W laser engraving machine.

Step 6. HanLaser HL-100 100w laser engraving machine corel draw x6 pilot run


Where to download Coreldraw x6 Corel laser and Laser draw? Please click here to download.

If you want to understand more about laser draw, please click here.


1. How to change language in corel laser?

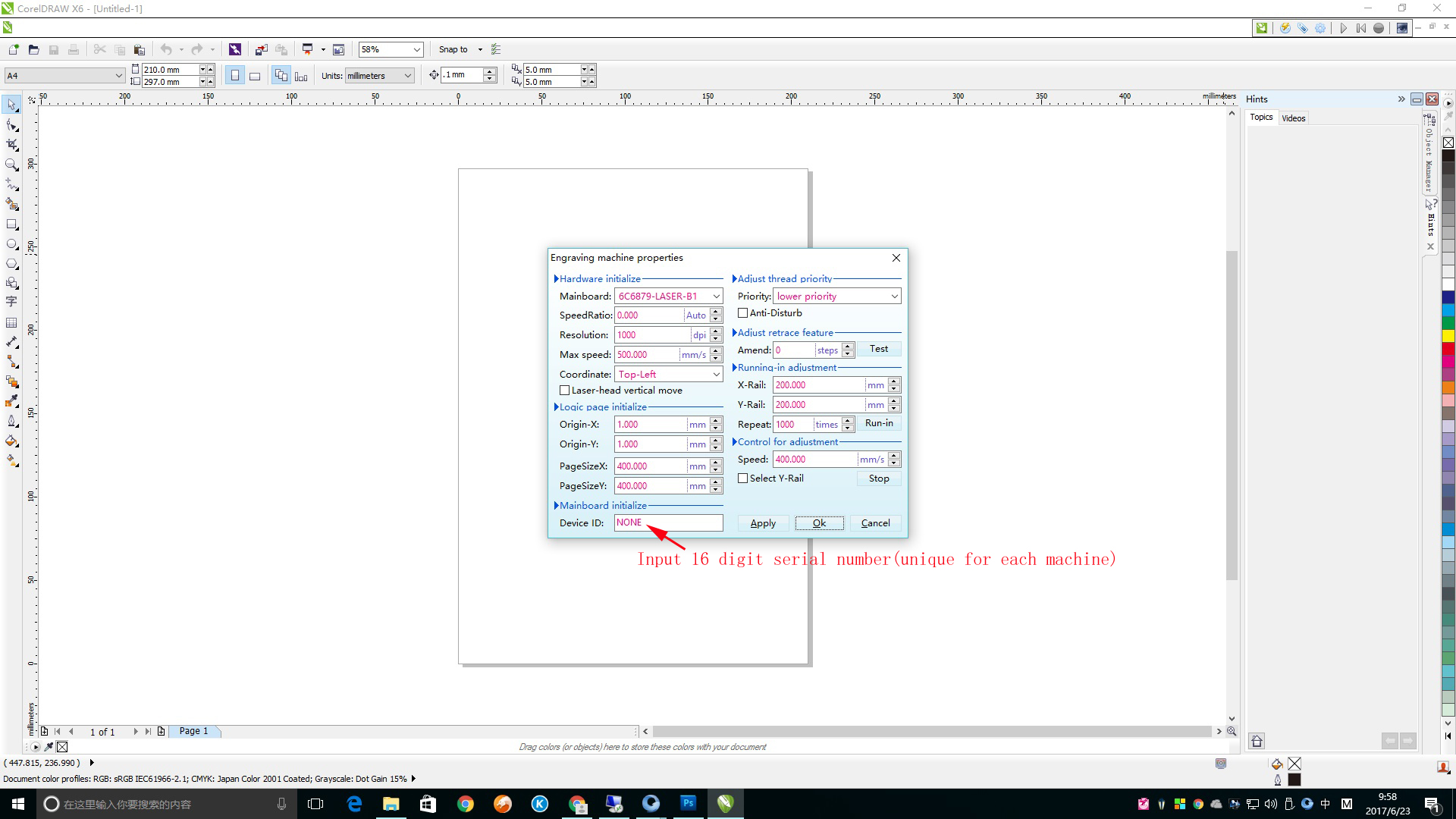

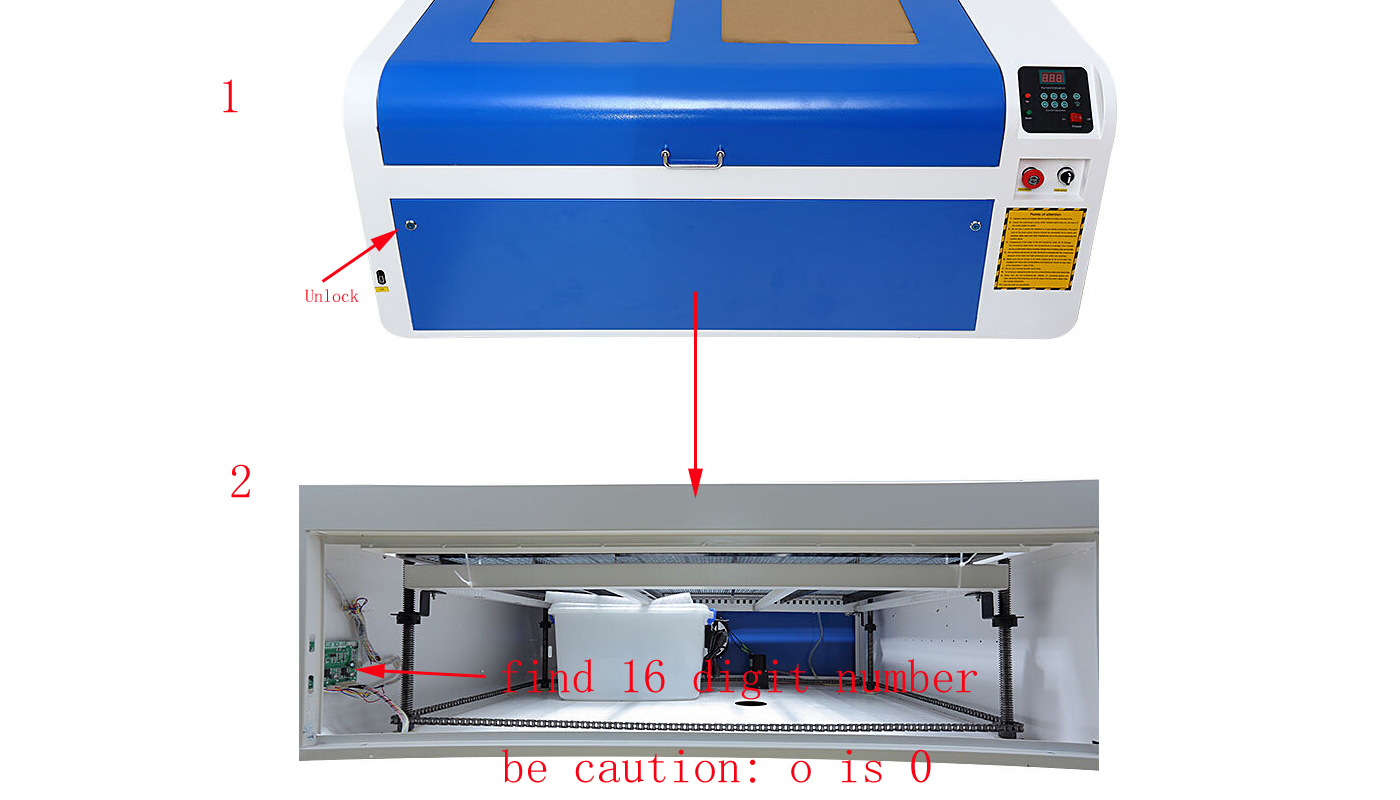

corel laser setting process

2. I run corel laser but laser engraving machine don’t response. How to fix it?

3. As for the software, does it work with CorelDraw or Adobe illustrator?

From software point of view, this machine support both CorelDraw and Adobe illustrator. The difference is CorelDraw come with plugin(corel laser) which graphic can be outputed directly to. On the other side, Adobe illustrator, it need to export EMF file and use software laserdraw to enable laser drawing.(eg. export .dxf to .EMF file)

this is the link to download software may be needed

4. I plug everything but why uplifting platform NOT working?

This is machine works at 220V/240V voltage. Please check your local voltage, if the voltage is 110V, an 1kw transformer(NOT adapter) is required.  Under 110V voltage, uplifting platform, led lamp, laser tube will NOT work.
